Description

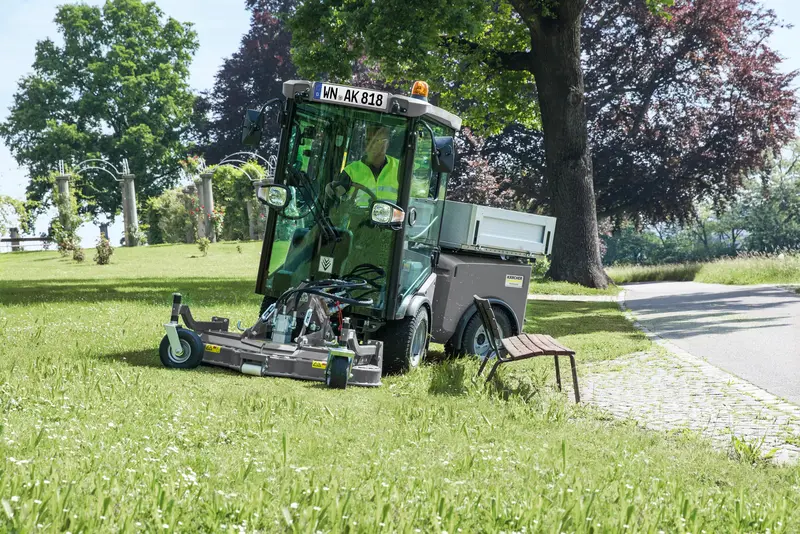

With modern diesel technology, the MIC 42 operates within the stage V emission regulations.
The machine is therefore suitable not only for applications in urban environmental zones, but it also performs well in terms of its efficiency. The high-quality components also contribute to this and permit very long maintenance intervals of 500 or 1000 hours. Access to all maintenance-related areas without the need for tools is also part of the intuitive concept, as are the many options to integrate the implements. For Example, front implements are mounted via a standard quick coupling KAT 0, while implements at the rear can be changed using the hydraulic tilting frame with minimum effort thanks to our quick-change system. An optional multi-coupler system guarantees fast and drip-free connection of the hydraulics. The operator also benefits from a very large cab with clearly laid-out operating elements and many other useful details such as a lockable storage compartment.
Technical data
| Drive | Diesel |
| Traction drive | Four-wheel drive |
| Motor manufacturer | Yanmar |
| Power Rating (kW) | 32 |
| Cylinder capacity (cm³) | 1568 |
| Cylinder | 3 |
| Emissions standard | STAGE V |
| Fuel tank (l) | 41 |
| Driving speed (km/h) | – 25 |
| Working speed (km/h) | – 25 |
| Wheelbase (mm) | 1500 |
| Total permissible weight (kg) | 2500 |
| Weight without accessories (kg) | 1400 |
| Weight incl. packaging (kg) | 1400 |
| Dimensions (L × W × H) (mm) | 3200 x 1400 x 2230 |
Equipment
- Particulate filter
- Air conditioning
- Heater
- Rotating warning beacon
- All-season-use
Benefits
Economical and environmentally friendly drive
Common rail direct injection and diesel particulate filter lower the emission values below STAGE V. For applications in urban green zones. Lower fuel consumption protects the environment and lowers the operating costs.
Integrated quick-change system
Mounting of front implements via standard coupling triangle KAT Municipal. Replacement of implements at the rear using quick-change system with hydraulic tilting frame. Optional multi-coupler system for fast and drip-free connection of hydraulics.
Maximum operating comfort
Largest cab in its class (1.45 m³ air volume), 360° panoramic view, ergonomic and clearly arranged. Windows on both sides, lockable storage compartment, USB charging port, bottle holder.
